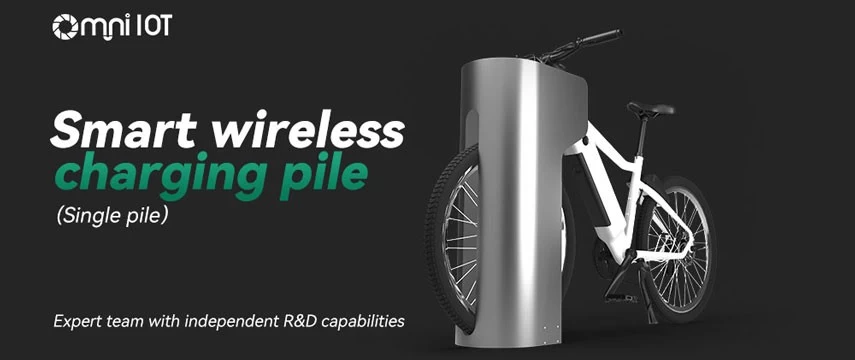

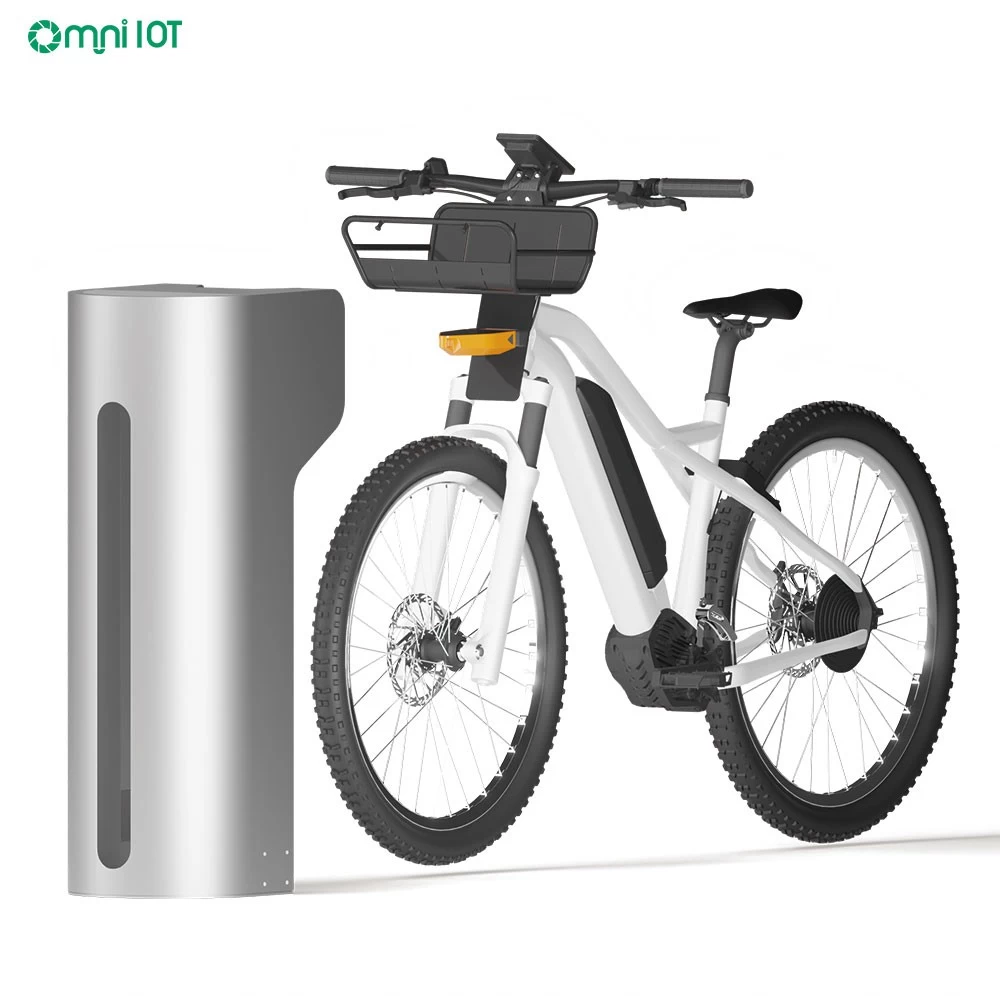

2 Wheeler Charging Station with Single Pile

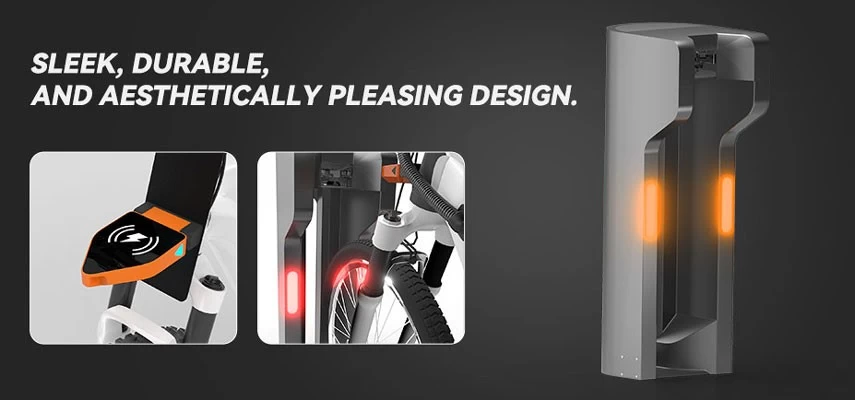

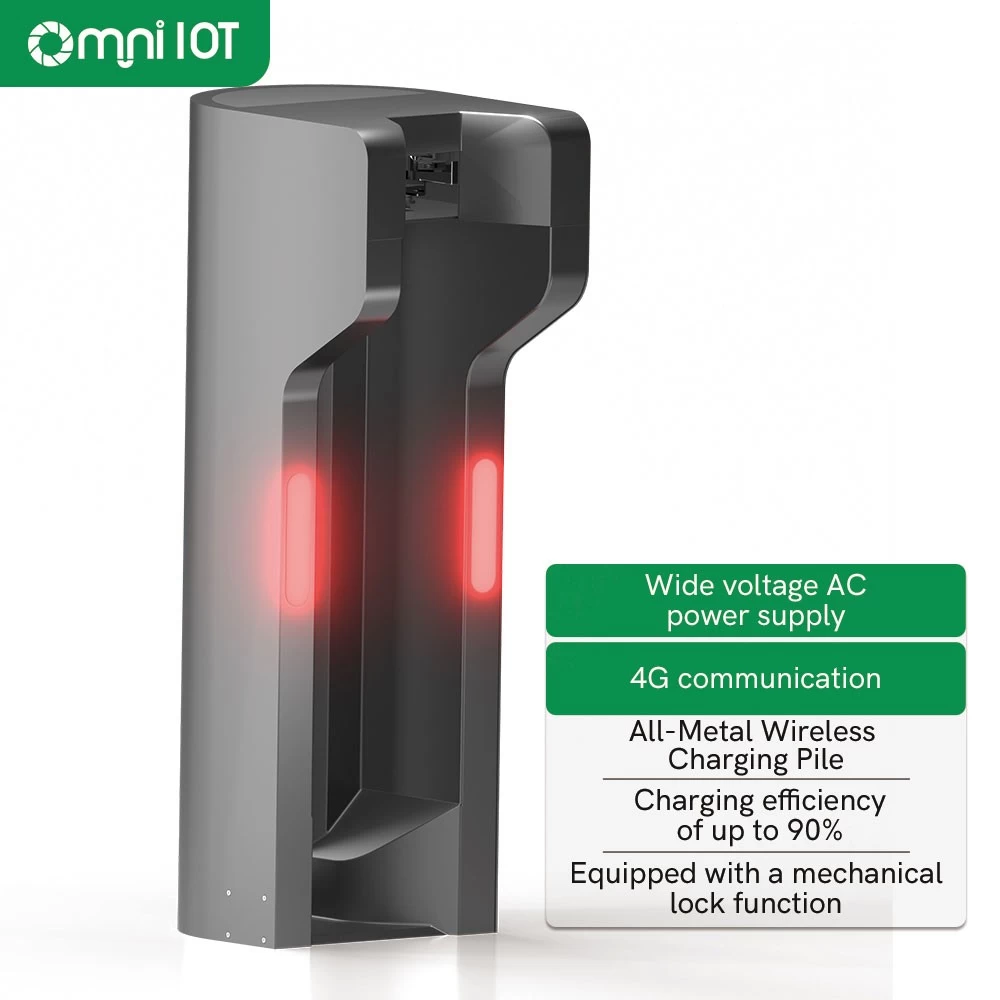

  • Strong and reliable with all-metal charging pile
  • Compatible with different regional operating voltages
  • Obtain charging pile data and vehicle status
  • Auto positioning when pushing the vehicle into the dock

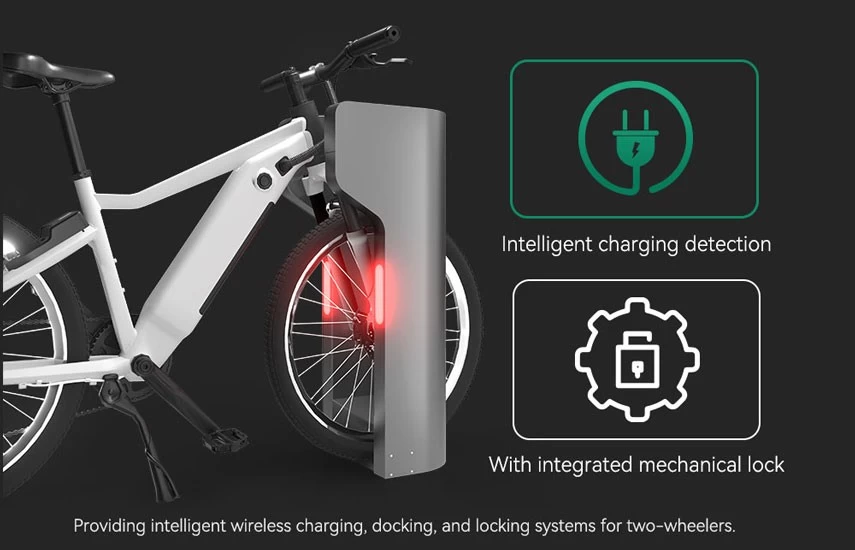

  • Features a mechanical locking,enhanced security
  • Charging status indicator light for clear visual feedback

Empowering the Ride with Smart, Reliable, and Versatile Charging Solutions



ebike charging station

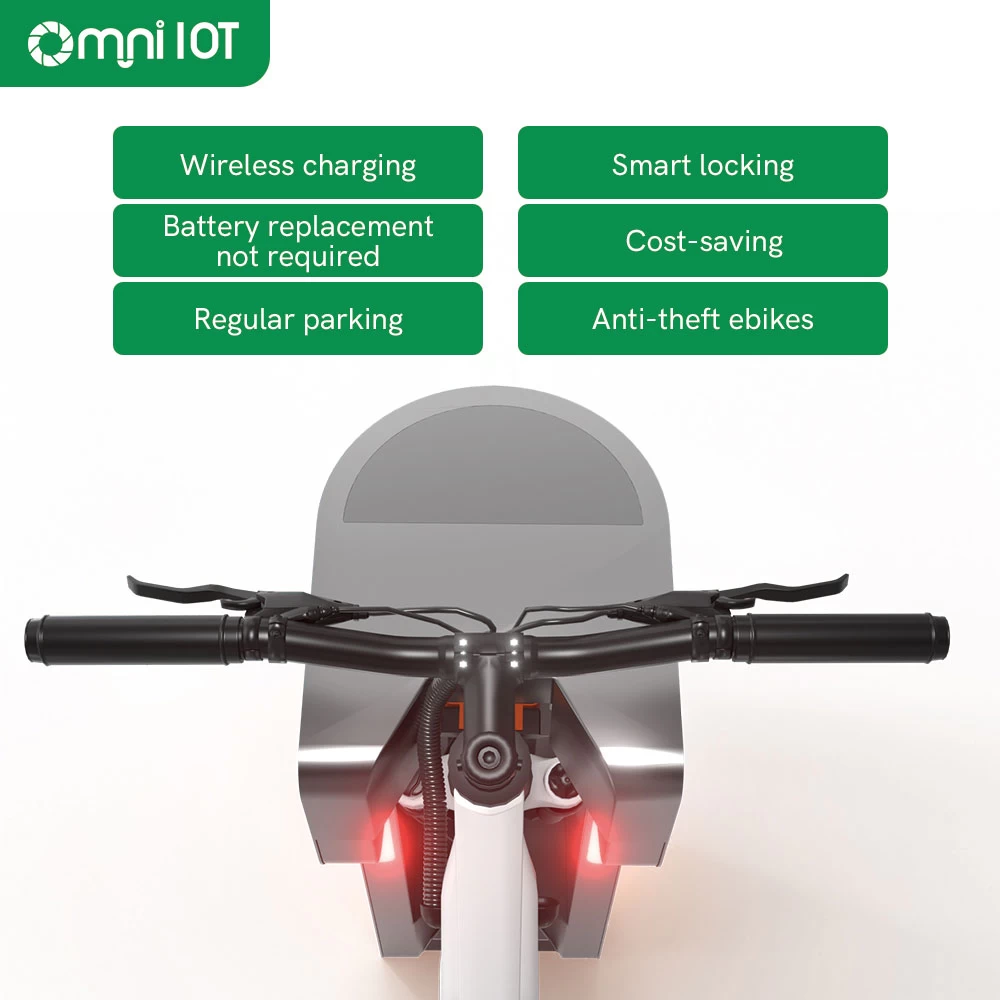

The 2 wheeler charging station is an ebike charging station for e-bikes' fixed parking,smart locking,enhanced ebikes' security and easier smart charging with NO battery replacement required.

electric bicycle charging station



What're Main Features and Work Flow of 2 Wheeler Charging Station?

How to Lock

 1. The user pushes the vehicle into the 2 wheeler charging station, and the vehicle's front lock hook engages with the charging station's lock.

 2. The 2 wheeler charging station's TX module sends an identity verification signal to the RX module every 2 seconds, continuing until the identification is successful.

 3. If the identity verification is successful, the ebike charging station's IoT system reports charging information, dock occupancy status, and vehicle ID, activates the charging function, turns on the charging indicator light, and plays an audio prompt indicating charging has started.

 4. The vehicle is automatically locked, and information about the lock status, charging status, and dock ID is reported. The instrument display shows the charging status symbol.

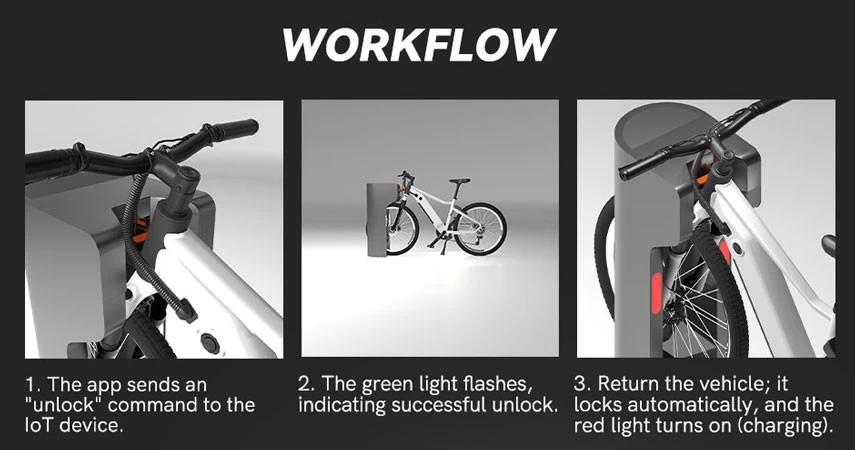

How to Unlock

 1. The user scans the vehicle's IoT code, and the server sends an unlock command.

 2. Upon receiving the unlock command, the vehicle's IoT device sends an unlock signal to the dock via the wireless RX module, then unlocks the electric bike lock and reports successful unlocking to the server.

 3. Upon receiving the unlock command from the vehicle's IoT device, the dock unlocks the ebike charging station's lock, deactivates the wireless charging, and reports the ebike charging station's status to the server. An audio prompt indicating the end of charging is played.

Charging Status

 1. During the vehicle's charging process at the charging stations, both the vehicle IoT device and the charging station IoT device must periodically send charging status information to the server.

 2. The vehicle IoT device periodically retrieves data from the RX module.

e-bike charging station

electric bike charging point

What's the wireless TX module and RX module?

The wireless charging TX and RX components are the valuable components of ebikes wireless charging solution and they work together to enable wireless energy transfer, communication functions, and mechanical locking capabilities.The TX module is installed on 2 wheeler charging station,and the RX module is installed on the electric bikes.

What's funtion of IoT device for the wireless charging solution?

The IoT device in a charging pile typically manages the connection between the charging station and the central server. It helps in remote monitoring, status reporting, and control of the charging process.

The IoT device in an e-bike serves to enhance the bike’s smart features, enabling real-time tracking, remote control, and performance monitoring.

bike charging stationev bike charging station

2 wheeler charging station
