Where do you Mount an E-Bike bike lock?

　　There’re different installation positions for e-bike lock,including normal bike locks and smart bike locks.The installation position,installation methods,required tools,and precautions are usually closely related to the type and design of the e-bike lock.

　　Below is the installation guide of one type of ring bike lock.

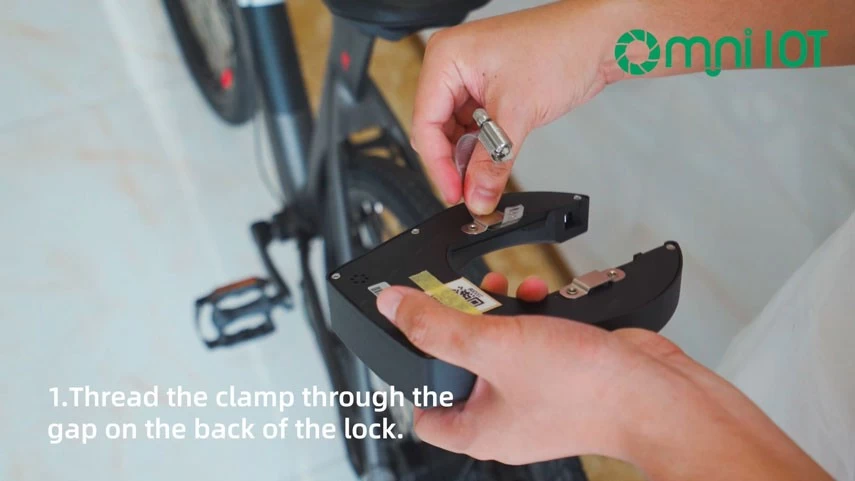

　　1.Thread the clamp through the gap on the back of the e-bike lock

　　2.Mount the lock onto the rear seat mount bracket

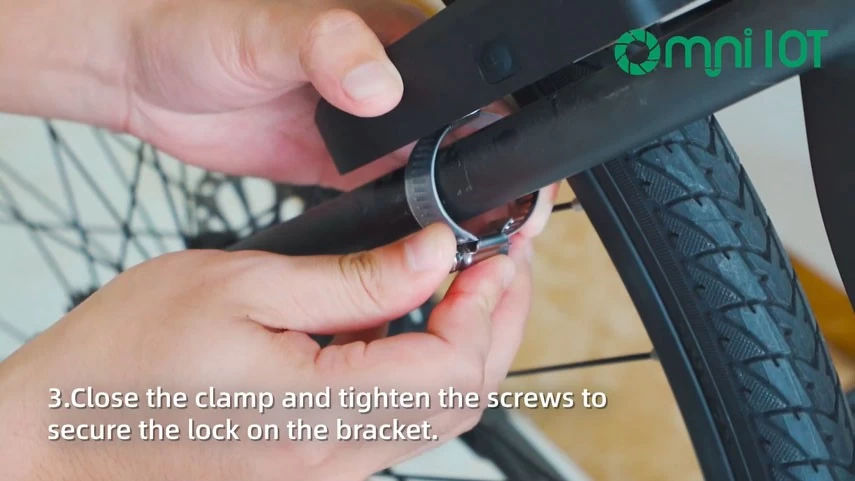

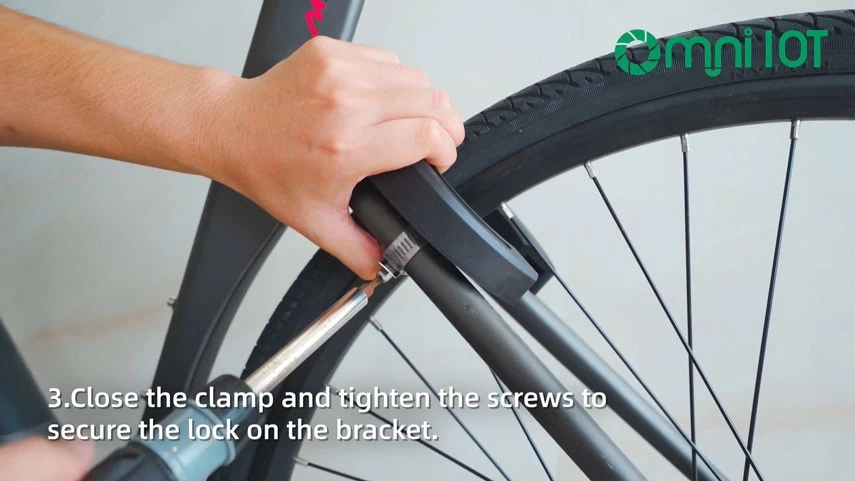

　　3.Close the clamp and tighten the screws to secure the e-bike lock on the bracket

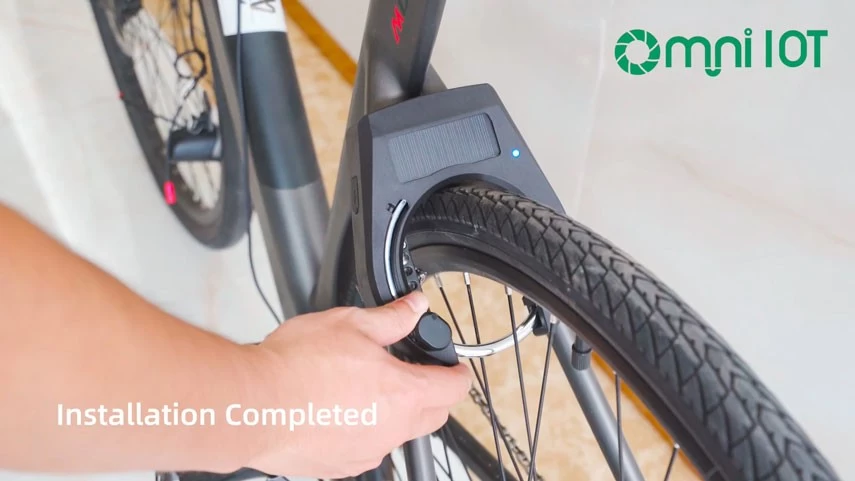

　　4.Installation completed

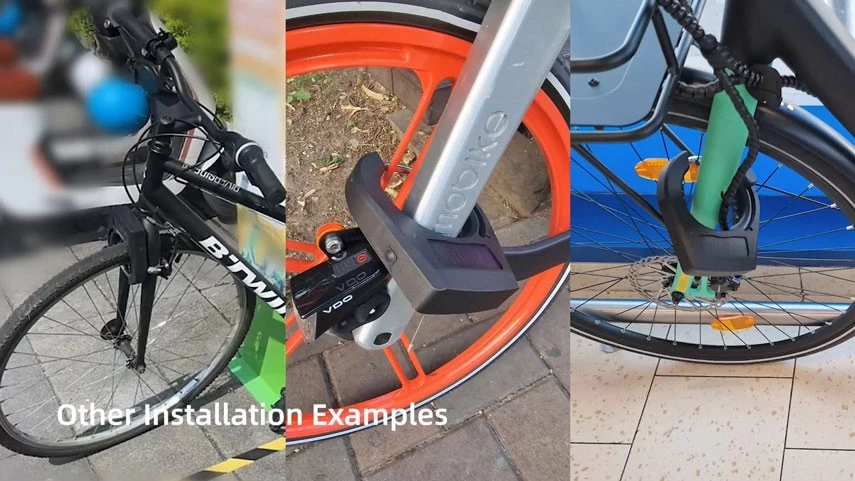

　　5.Other installation examples

　　This bike lock is a smart bike lock with smarter unlocking methods.

　　It’s easily unlocked via Bluetooth connection with one-tap on smart bike app,when the mobile phone is near the e-bike lock,we can just press the button on bike lock and it can be unlocked quickly and easily.If bike owners don’t want to use mobile,they can use a RFID card to unlock their e-bikes.

　　Below are different types of e-bike locks and the positions where they can be installed.

　　1.U-Lock(D-Lock)

　　Features:Made of hardened steel,highly resistant to cutting and prying.

　　Installation:Secures the frame+wheel to a fixed object.

　　2.Chain Lock

　　Features:Flexible hardened steel chain with a lock head,versatile for various locking methods.

　　Installation:Loops through frame+wheels+fixed object.

　　3.Cable Lock

　　Features:Lightweight,flexible,and easy to wrap around the bike,but less secure.

　　Installation:Loops through wheels and frame.

　　4.Folding Lock

　　Features:Multiple steel bars connected with rivets,foldable and compact,balancing portability and security.

　　Installation:Mounted on the bike frame with a bracket,locks frame+wheel+fixed object.

　　5.Ring Lock(Frame Lock/Horseshoe Lock)

　　Features:Permanently mounted on the rear wheel area,easy one-click locking,popular in European cities.

　　Installation:Fixed directly above the rear wheel on the frame.

　　6.Smart Lock

　　Features:Integrated with Bluetooth,NFC,4G,or GPS,unlocks via APP or sharing system.

　　Installation:Usually mounted on the bike frame(top tube,seat tube)or custom-built into the design.

　　7.Wheel Lock(Disc or Clamp Lock)

　　Features:Locks the wheel rim or brake disc,preventing rotation.

　　Installation:Mounted directly on the front or rear wheel.

　　8.Portable Mini Lock

　　Features:Compact and lightweight,designed for quick stops or carrying convenience.

　　Installation:Flexible use around frame and wheel.
