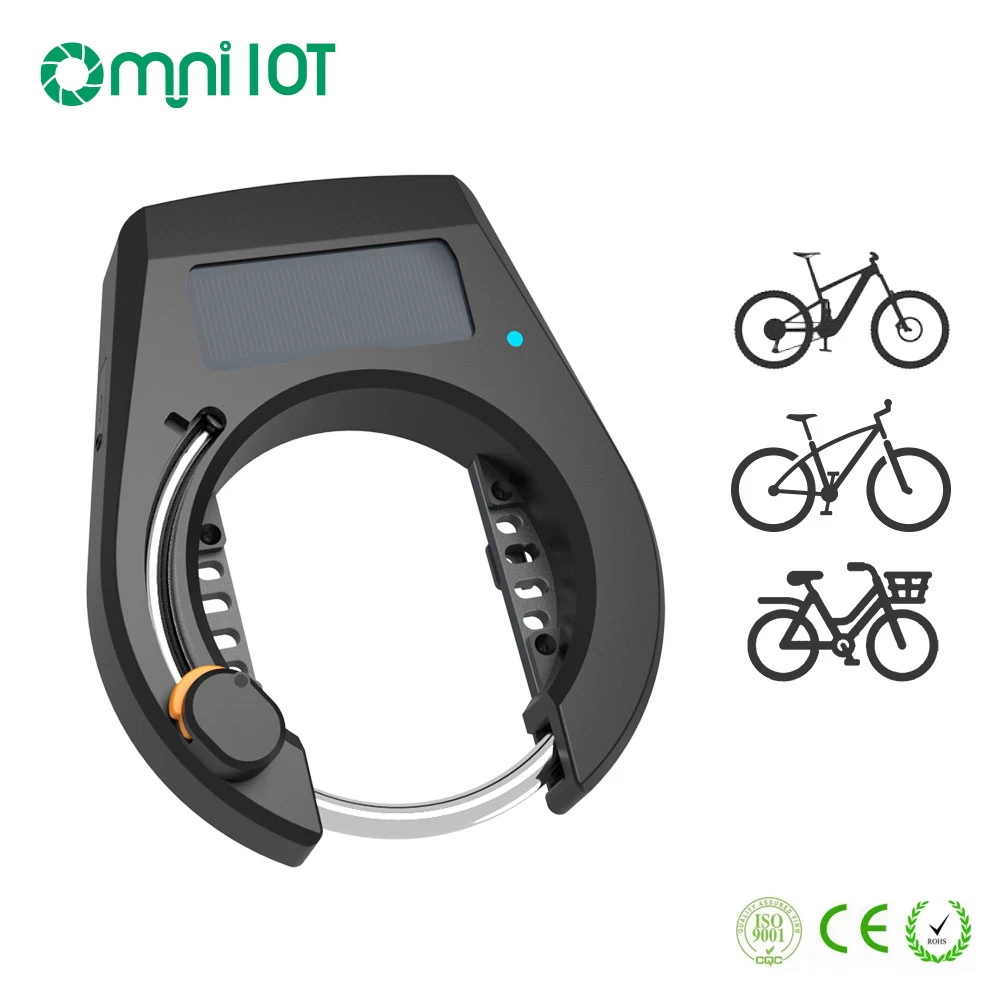

OL305B Smart Cycle Lock
- Product: smart cycle lock
- Built-in battery:700mAh/3.7V
- Waterproof level: IPX7
- Double security for bikes
- Abnormal movement alarming

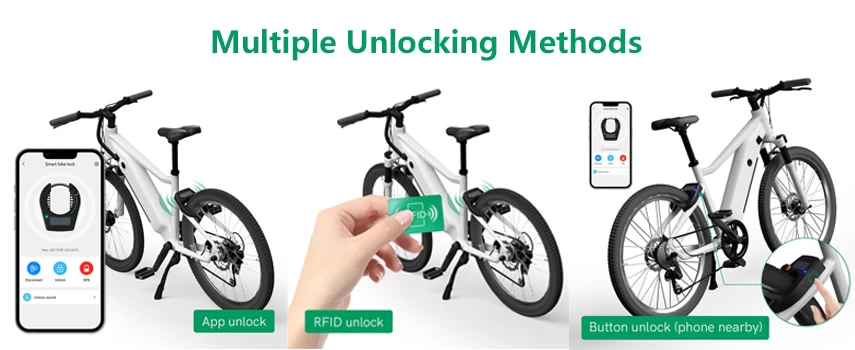

- Unlock methods: Bluetooth unlocks/ RFID card unlocks
Safely Protect the Bikes with Multiple Guarding Against Theft
Function Description of the Smart Cycle Lock
| Function | Details |

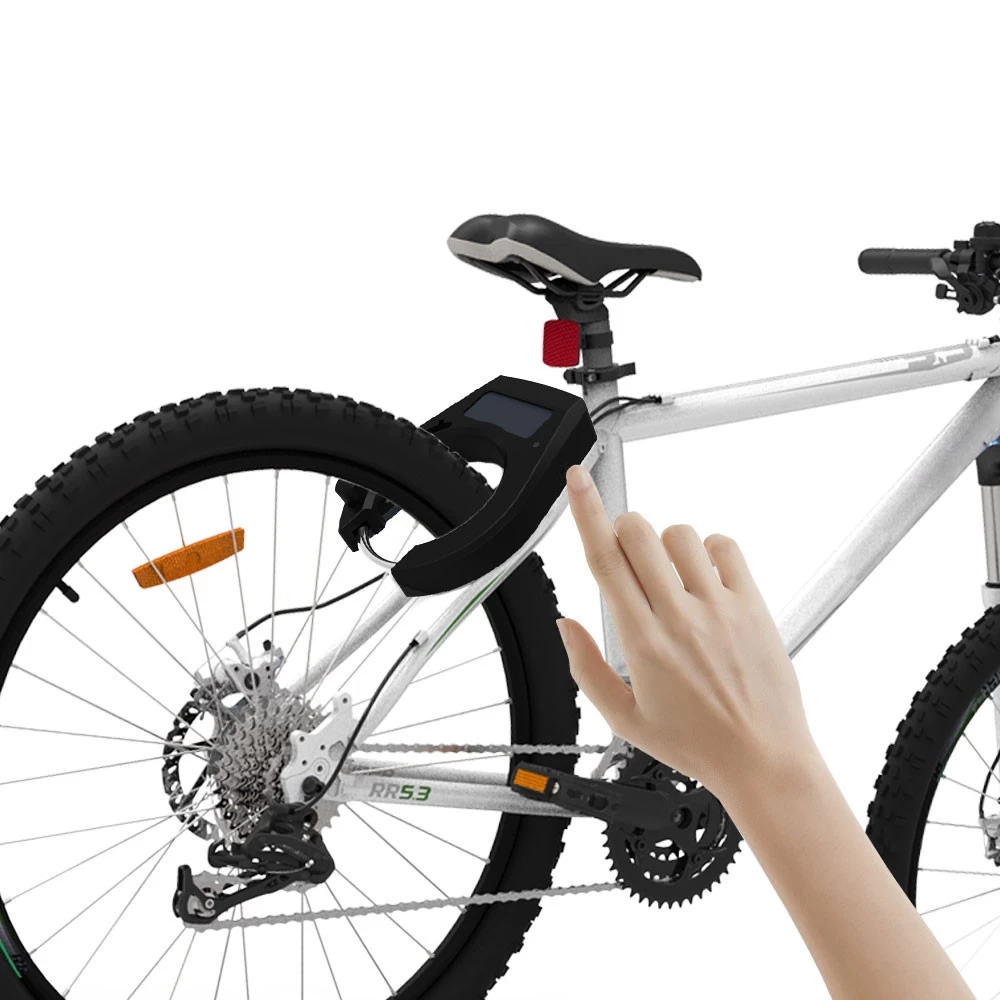

| APP Unlocking | Supports Bluetooth 4.0 communication. After pairing and setting a password via the smart bike lock app, unlocking can be done in two ways when the phone is near the smart cycle lock: • APP Unlock: Tap the unlock button in the app. • Manual Button Unlock: When the phone is near the lock, press the button on the right side of the lock to unlock. |
| RFID Card Unlocking | Unlocks when a registered and authorized RFID card is placed near the bike lock and detected. |
| Movement Alarm | When the bike lock is engaged and the vehicle is moved, the lock alarms and notices bike owner. |
What are the parameters of the smart cycle lock?
-
Unlocking Method: RFID Card / Bluetooth
-
Locking Method: Manual Locking
-
Standby Time: >60 days (without solar charging)
-
DC Charging: 5VDC / 500mA
-
Charging Indicator: Red light on = charging; Red light off = fully charged
-
Built-in Battery: 700mAh / 3.7V
-

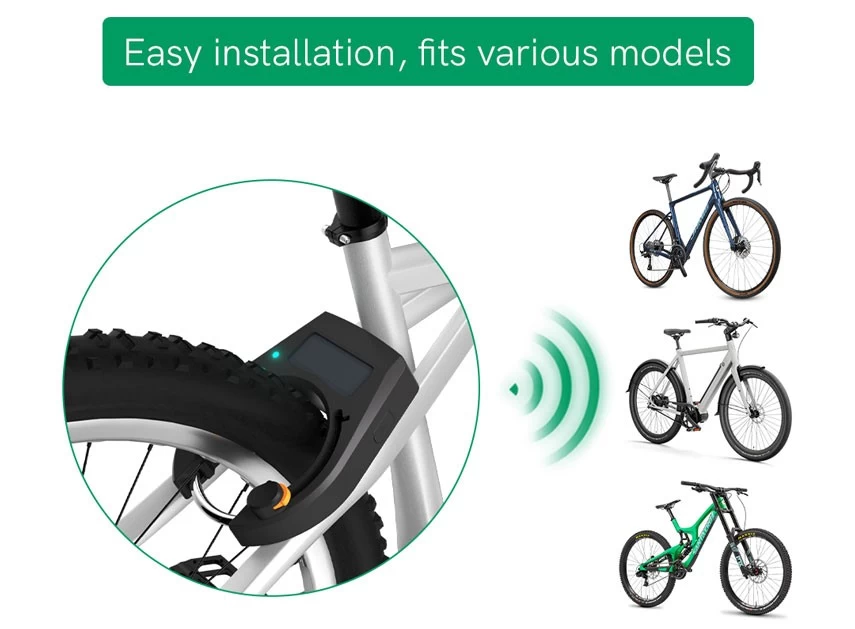

Mounting Hole Distance: 78mm
-
Mounting Clamp Range: 20–40mm Diameter
-
Operating Temperature: -10°C to +60°C
-
Operating Humidity: 10% to 95%
-
Storage Temperature: -40°C to +80°C
-

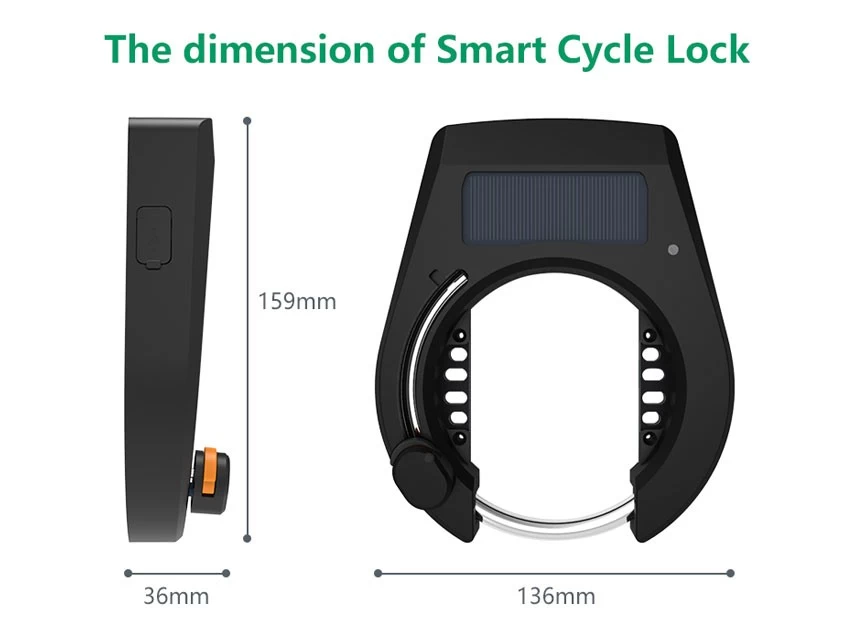

Overall Dimensions (L × W × H): 159 × 136 × 36mm
-
Color: Black (customizable upon request)
-
Material: Front Cover: PA66 + 30% GF; Bottom Shell: Aluminum Alloy
-
Net Weight: 450g
-
Waterproof Rating: IPX7
About Bluetooth Performance:
-
Bluetooth Version: BLE 4.0
-
Receiving Sensitivity: -90 dBm
-
Maximum Communication Distance: ≥10 meters (in open space)
About RFID Performance (Optional):
-
Operating Frequency: 13.56 MHz
-
Communication Protocol: ISO/IEC 14443A
